Pneumatic air compressed
ROLLERS
ONE MAN CAN MOVE UP TO 100 TONS!
It moves round material with a diameter at least 60 cm. As an example paper reels, cable reels and coils and vehicles. Easy Mover replaces the traditional and difficult movement system of reels with big diameter in the industry paper manufacturing of cellulose.
The sturdy plastic cylinders assure a friction that it allows a rotator force until 1500 kp on the floor.
It needs to be connected to the compressed air line in order to move heavy materials without hard work. So the job costs and safety risk is drastically reduced.
It moves round material with a diameter at least 60 cm. As an example paper reels, cable reels and coils and vehicles. Easy Mover replaces the traditional and difficult movement system of reels with big diameter in the industry paper manufacturing of cellulose.
The sturdy plastic cylinders assure a friction that it allows a rotator force until 1500 kp on the floor.
It needs to be connected to the compressed air line in order to move heavy materials without hard work. So the job costs and safety risk is drastically reduced.
Model | Application | Capacity | Weight | Traction | Max Speed | Air Pressure | Air Volume |
|---|---|---|---|---|---|---|---|

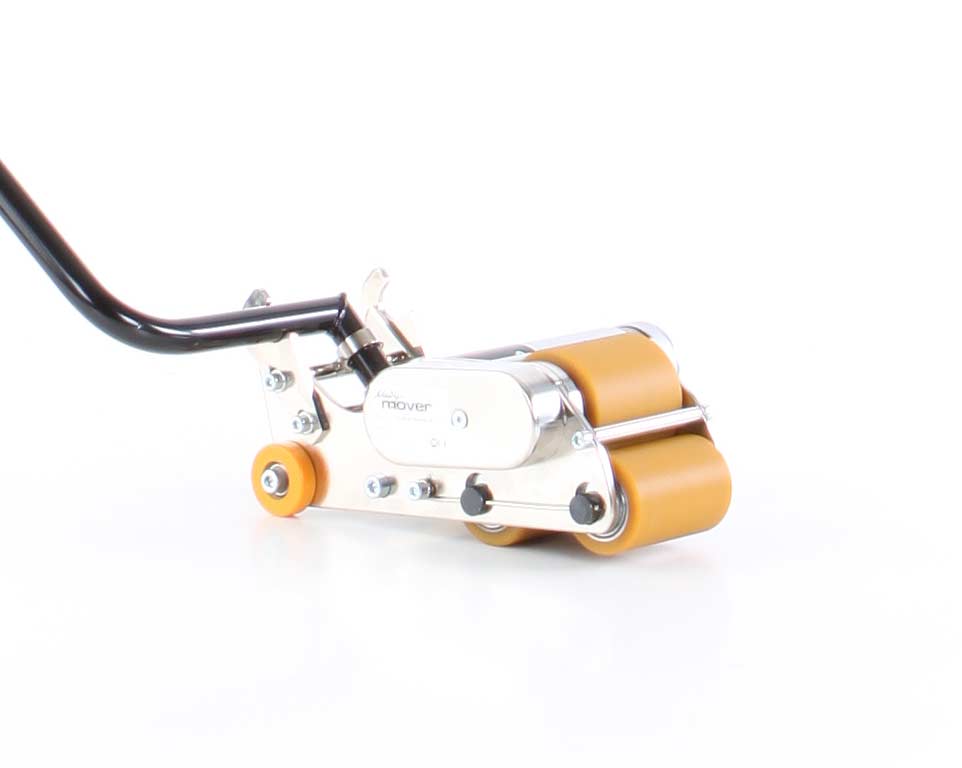

P 350 B | Paper rolls | 10 ton | 14 kg | 300 kp | 23 m / min | 6 bar | 650 l/min |
P 1250 B | Paper rolls | 20 ton | 20 kg | 1200 kp | 25 m / min | 6 bar | 1200 l/min |
P 350 BTW | Soft tissue | 10 ton | 25 kg | 300 kp | 29 m / min | 6 bar | 650 l/min |
P 1250 BTW | Soft tissue | 20 ton | 29 kg | 1200 kp | 29 m / min | 6 bar | 1200 l/min |
V 350 B | Vehicles | 15 ton | 14 kg | 300 kp | 23 m / min | 6 bar | 650 l / min |

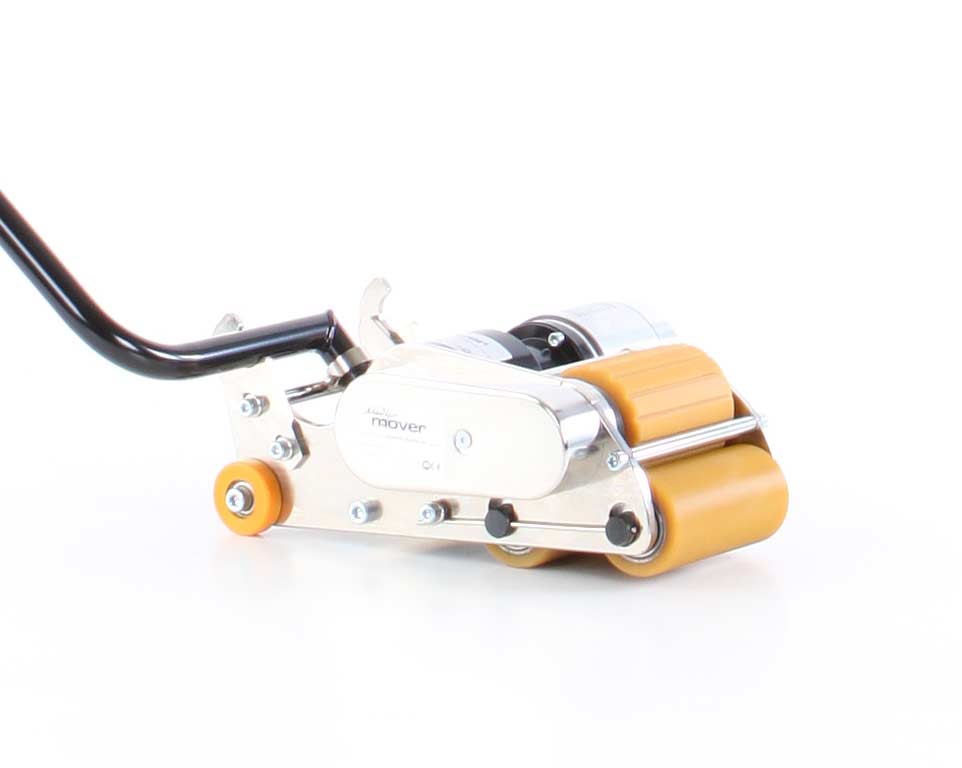

V 1250 B | Vehicles | 25 ton | 20 kg | 1200 kp | 25 m / min | 6 bar | 1200 l/min |

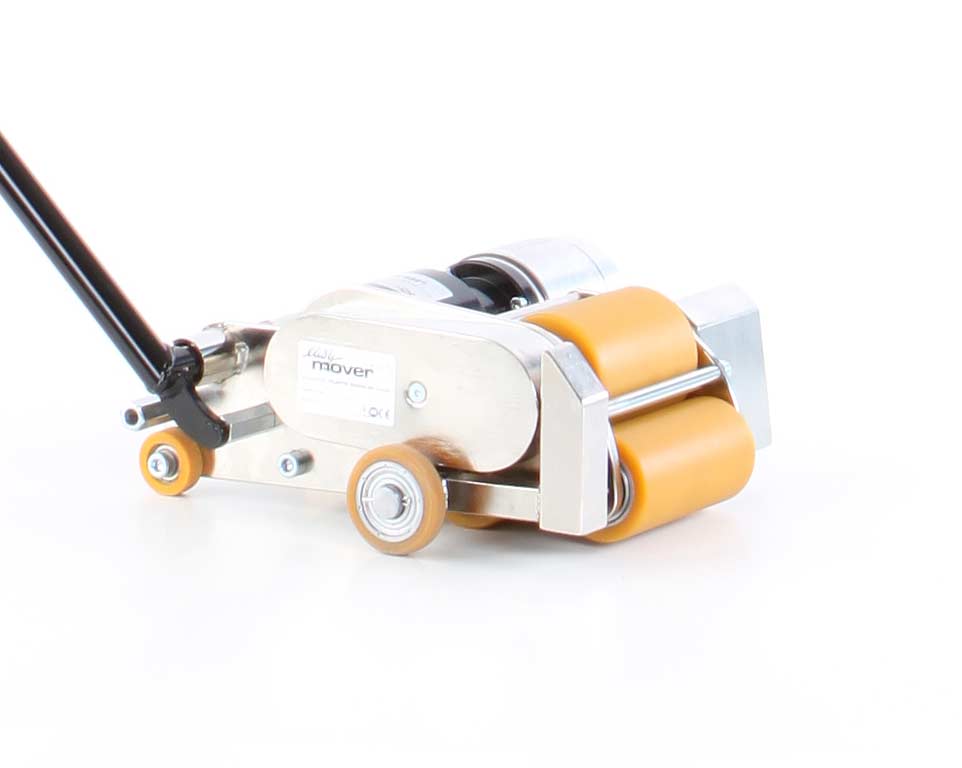

C 1500 A | Cable | 50 ton | 24 kg | 1500 kp | 15 m / min | 6 bar | 200 l / min |

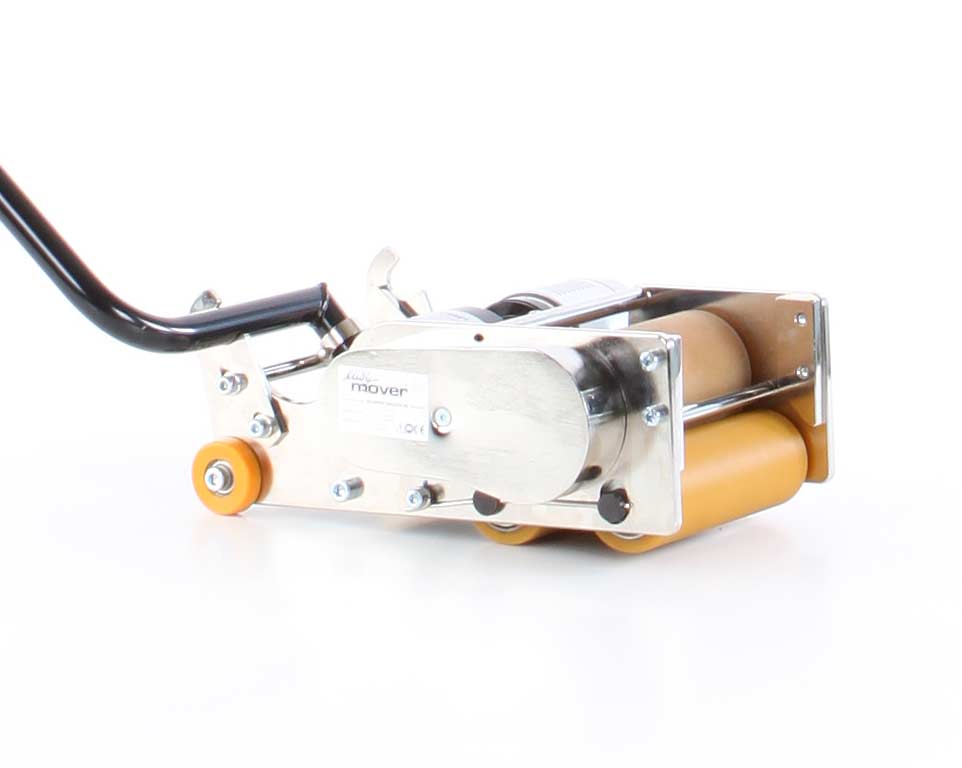

CF 1500 A Pir | Cable | 50 ton | 26 kg | 1500 kp | 15 m / min | 6 bar | 1200 l/mi |

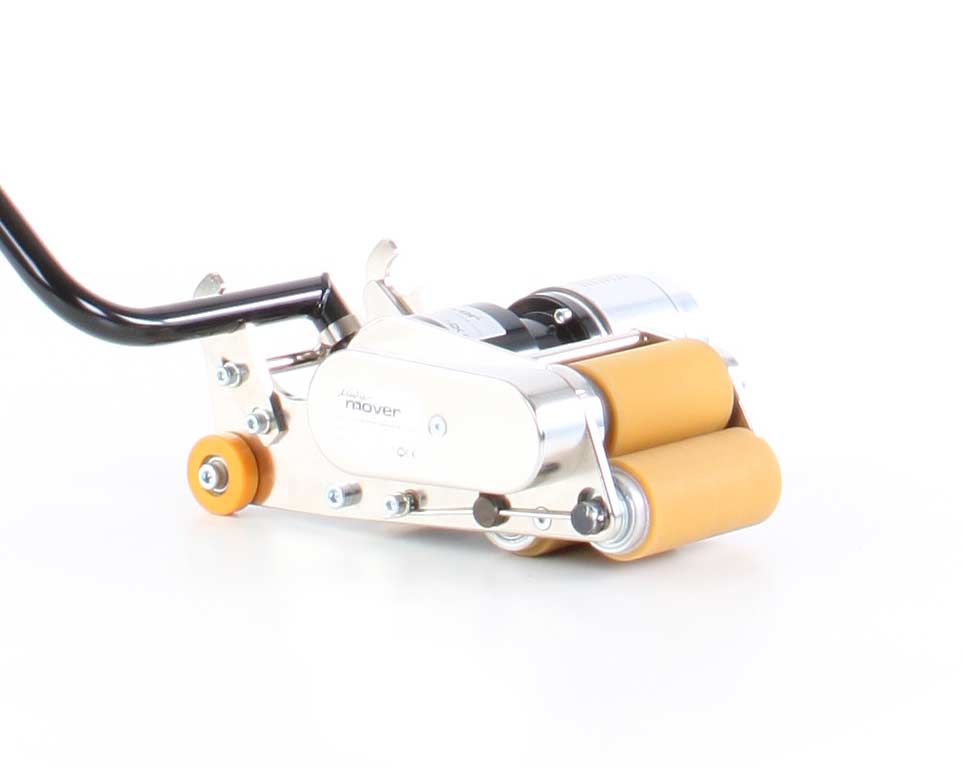

F 1500 A | Cable | 50 ton | 26 kg | 1500 kp | 15 m / min | 6 bar | 1200 l/mi |
Easy Mover - How it works
